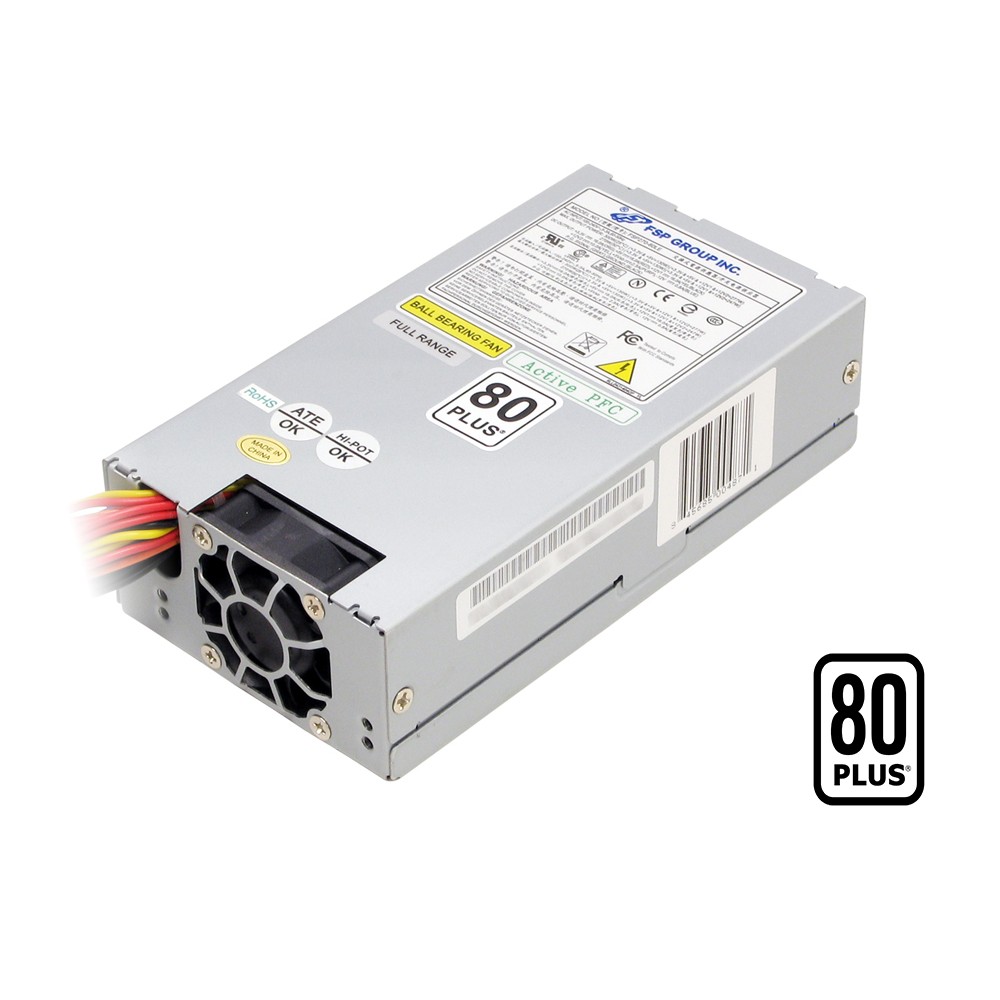

FSP270-60LE(80)

More Views

FSP270-60LE(80)
$65.99

Availability: Out of stock

MANUFACTURER: FSP GROUP
PART#: 9PA2700717 | WARRANTY: 2-YEAR | UPC CODE:


Description

Details

THIS FLEX ATX 270-WATT POWER SUPPLY UNIT is 80PLUS certified for strict operating efficiency performance.  It features full range input, Active PFC, 40mm ball bearing cooling fan with chrome fan guard. It fits most compact high-performance Flex ATX form factor and high operating efficiency configuration.  FSP Quality Assurance Program, a manufacturer’s direct service guarantees quality and performance for a period of 2-Year, included.  All FSP OEM models are qualified for RoHS, Lead-Free, Green Product (G.P) global environmental friendly status.
Additional Information

Additional Information

Specifications
GENERAL SPECIFICATIONS:

COOLING Fan(s): Single, 40mm ball-bearing fan linked with Thermal Sensor
TOTAL OUTPUT POWER: 270-WATT TOTAL CONTINUOUS OUTPUT @ 30°C
OUTPUT CONNECTORS: Main 20+4 Pin, P4 4-Pin, (3) Molex 4-Pin, (1) FDD 4-Pin, (2) Serial ATA 15-Pin

NVIDIA SLI SUPPORT N/A
AMD/ATI CROSSFIRE SUPPORT: N/A
80PLUS CERTIFIED: YES, 80PLUS CERTIFIED
MODULAR CABLE: N/A
SAFETY APPROVAL: UL, CSA, IEC, CE, TUV/VDE, NEMKO
MBTF: 100,000 HOURS @ TYPICAL
UNIT SIZE: 80.0mm (W) X 150.0mm (D) X 40.0mm (H)
UNIT WEIGHT: 3.0 LB (S)

INPUT SPECIFICATIONS:

Input Voltage: 115V AC to 230V AC, 47 ~ 63Hz
Power Factor Correction (PFC): ACTIVE PFC | FULL RANGE
Input Current: 5.0A @ 115 Vrms, 60 Hz.
  3.0A @ 230 Vrms, 50 Hz.
Input Protection: Patented Input Fuse Protection

OUTPUT SPECIFICATIONS:

+12V RAILS: 2

Output Voltage: +3.3V DC
  +5V DC
  +12V1 DC
  +12V2 DC
  -12V DC
  +5Vsb DC (Standby)

Output Current: 16.0A @ +3.3V DC
  18.0A @ +5V DC
  16.0A @ +12V1 DC
  10.0A @ +12V2 DC
  0.8A @ -12V DC
  2.5A @ +5Vsb DC Standby

Output Protection: Complete OVP, OCP, SCP Protection
  OVP: OVER VOLTAGE PROTECTION
  OCP: OVER CURRENT PROTECTION
  SCP: SHORT-CIRCUIT PROTECTION
Features 80PLUS CERTIFIED
  • SUPPORTS AMD/INTEL CPU SYSTEM
  • 270-WATT CONTINUOUS OUTPUT
  • 40mm COOLING FAN SYSTEM
  • THERMAL CONTROL SYSTEM LINKED TO FAN
  • ENERGY SAVER | 1-WATT STANDBY MODE
  • HIGH POWER CONVERSION EFFICIENCY
  • ACTIVE PFC | FULL RANGE INPUT
